Cirrus Logic CL-GD5446

Written by
Rate this item
(13 votes)

64-bit VisualMedia Accelerator.



Palcal's cards:

(759) FVGAP-CL5
(759) FVGAP-CL5
(759) FVGAP-CL5

(759) FVGAP-CL5
(759) FVGAP-CL5
(759) FVGAP-CL5

CL-GD5446-HC-A
CL-GD5446-HC-A
CL-GD5446-HC-A

CL-GD5446-HC-A
CL-GD5446-HC-A
CL-GD5446-HC-A

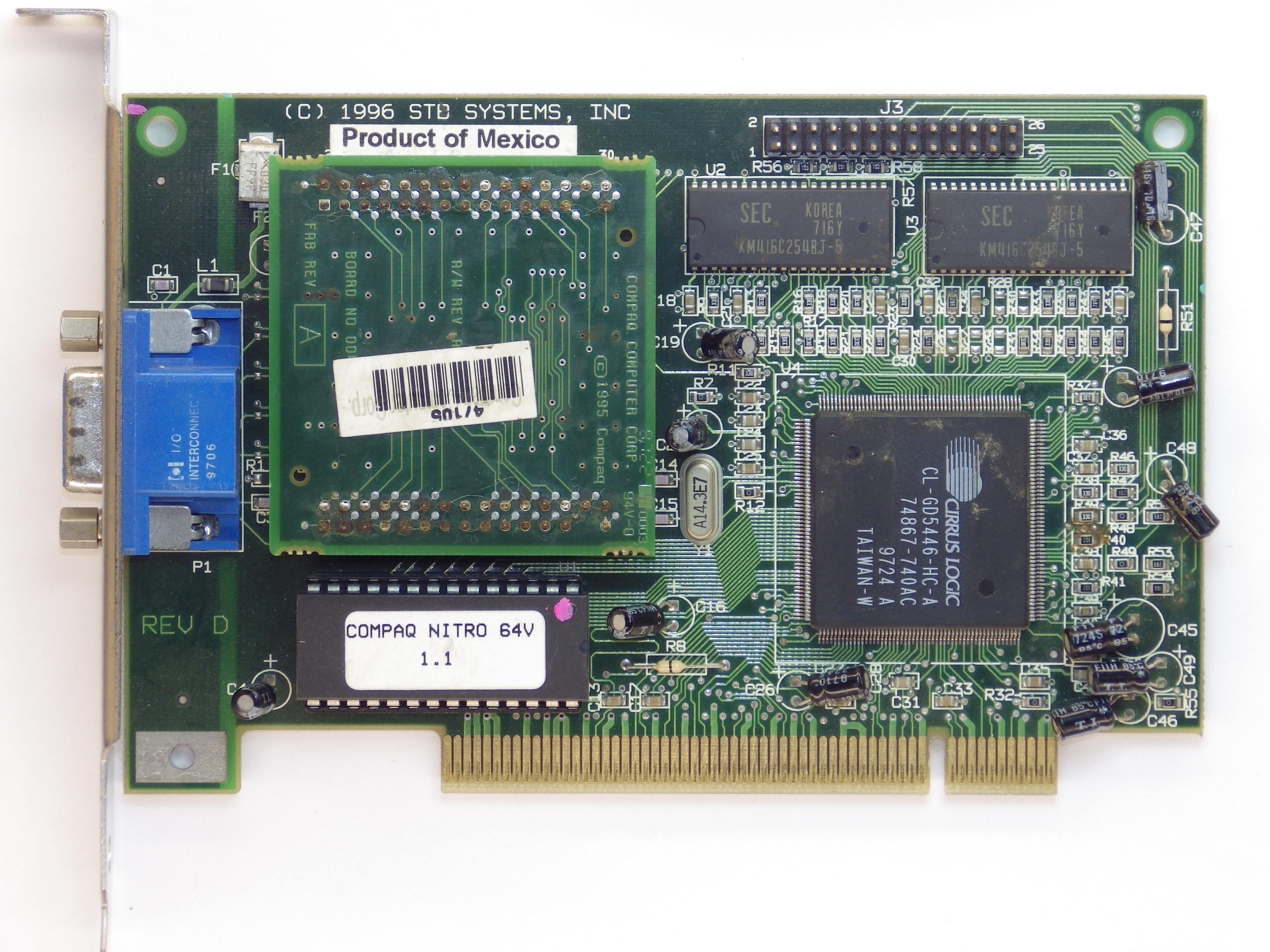

STB Nitro 64V
STB Nitro 64V
STB Nitro 64V

STB Nitro 64V
STB Nitro 64V
STB Nitro 64V

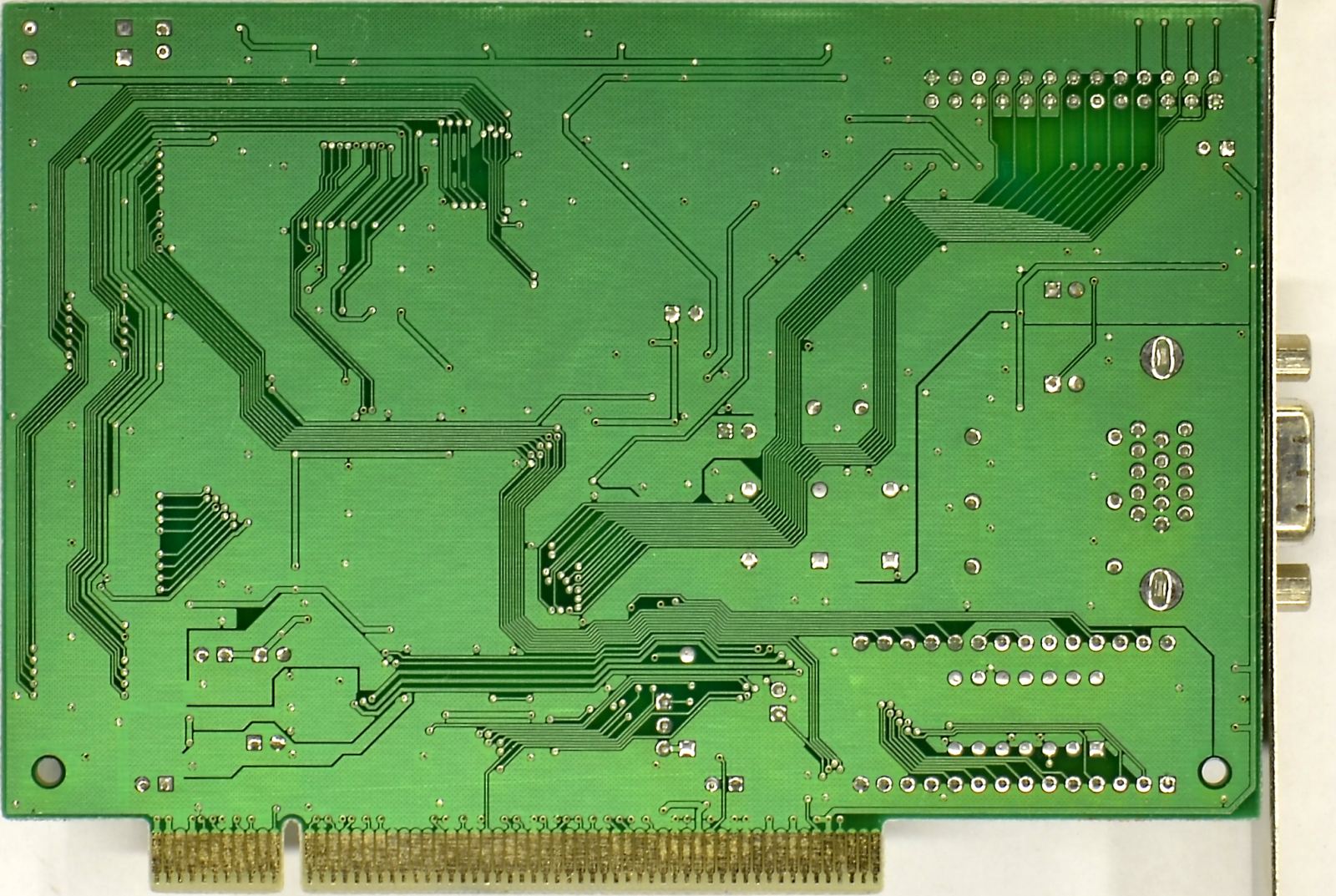

(672) FVGAP-CL8
(672) FVGAP-CL8
(672) FVGAP-CL8

(672) FVGAP-CL8
(672) FVGAP-CL8
(672) FVGAP-CL8

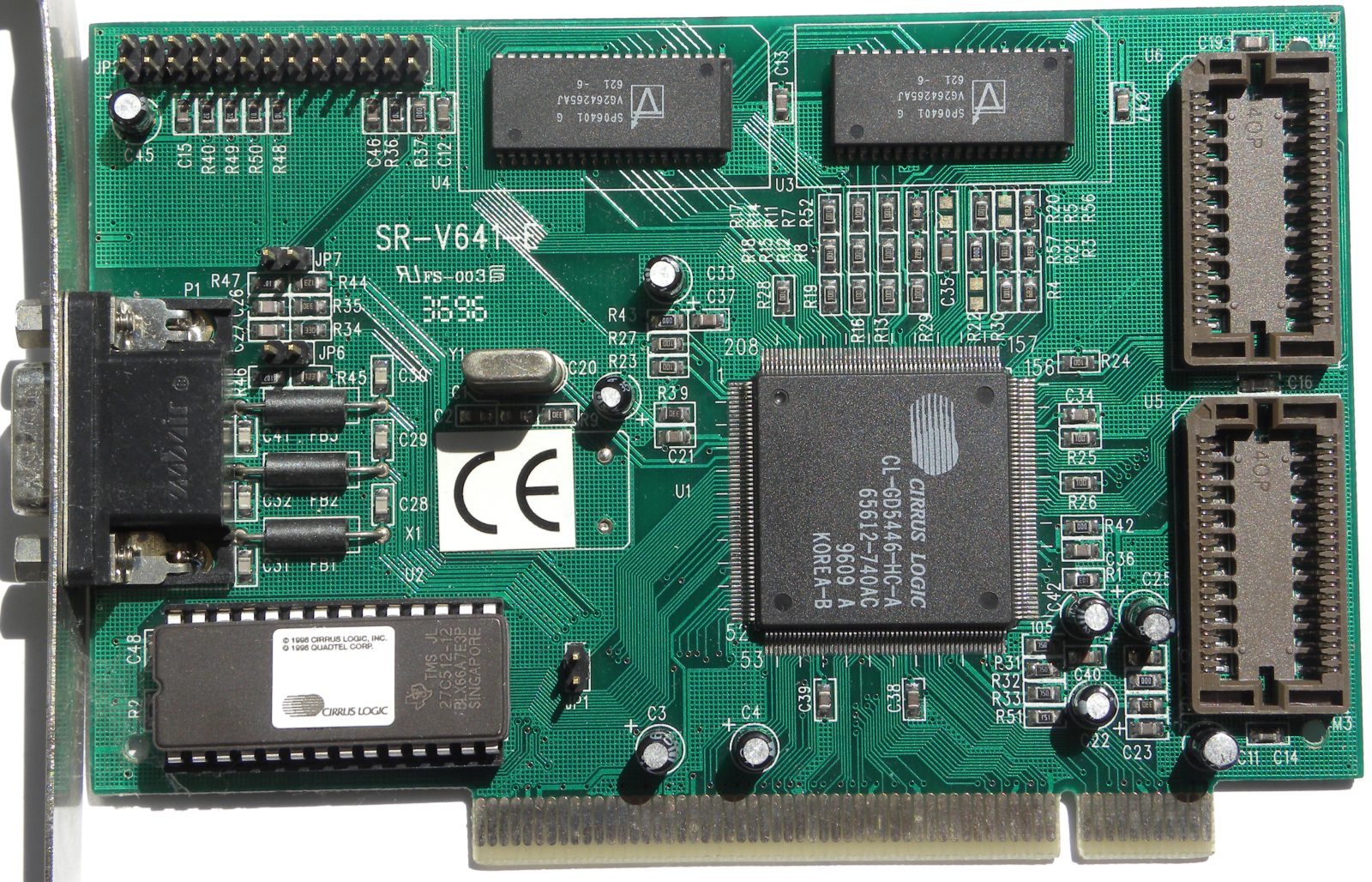

(673) SR-V641-E
(673) SR-V641-E
(673) SR-V641-E

(673) SR-V641-E
(673) SR-V641-E
(673) SR-V641-E

(153) Daytona 64E rev.C2J
(153) Daytona 64E rev.C2J
(153) Daytona 64E rev.C2J

(153) Daytona 64E rev.C2J
(153) Daytona 64E rev.C2J
(153) Daytona 64E rev.C2J



Vlask's cards:

STB Nitro 64V
STB Nitro 64V
STB Nitro 64V

STB Nitro 64V
STB Nitro 64V
STB Nitro 64V

CL-GD5446BV
CL-GD5446BV
CL-GD5446BV

CL-GD5446BV
CL-GD5446BV
CL-GD5446BV

CL-GD5446BV HQ
CL-GD5446BV HQ
CL-GD5446BV HQ

CL-GD5446BV HQ
CL-GD5446BV HQ
CL-GD5446BV HQ

Compaq integrated chips (P166)
Compaq integrated chips (P166)
Compaq integrated chips (P166)



Zaatharen's cards:

Cirrus Logic CL-GD5446
Cirrus Logic CL-GD5446
Cirrus Logic CL-GD5446

Cirrus Logic CL-GD5446
Cirrus Logic CL-GD5446
Cirrus Logic CL-GD5446

Cirrus Logic CL-GD5446
Cirrus Logic CL-GD5446
Cirrus Logic CL-GD5446

Cirrus Logic CL-GD5446
Cirrus Logic CL-GD5446
Cirrus Logic CL-GD5446

Additional Info

  • Made by: Cirrus Logic
  • Codename: GD5446
  • Bus: PCI
  • Memory Size: 1MB, 2MB
  • Max Memory Size: 4MB
  • Memory Type: EDO
  • Year: 1996
  • Announce Date: Monday, 13 November 1995
  • Card Type: VGA
  • Made in: Taiwan, Korea
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub
  • Power consumption (W): 2
  • Video Acceleration: MPEG-1 (VCD)
  • Core Clock (MHz): 135
  • Core: 64bit
  • Effective Memory Clock (MHz): 80
  • Memory Bus Width: 64bit
  • Memory Bandwidth (MB/s): 320
  • Sold by: CompaqSTB
