ATI Radeon 9500

Written by
Rate this item
(0 votes)

ATI Radeon 9700 with cut pipelines to half sold as mainstream OEM card.



Cards were sold at OEM markets. 64MB versions using only 128bit memory bus.

Zaatharen's card:

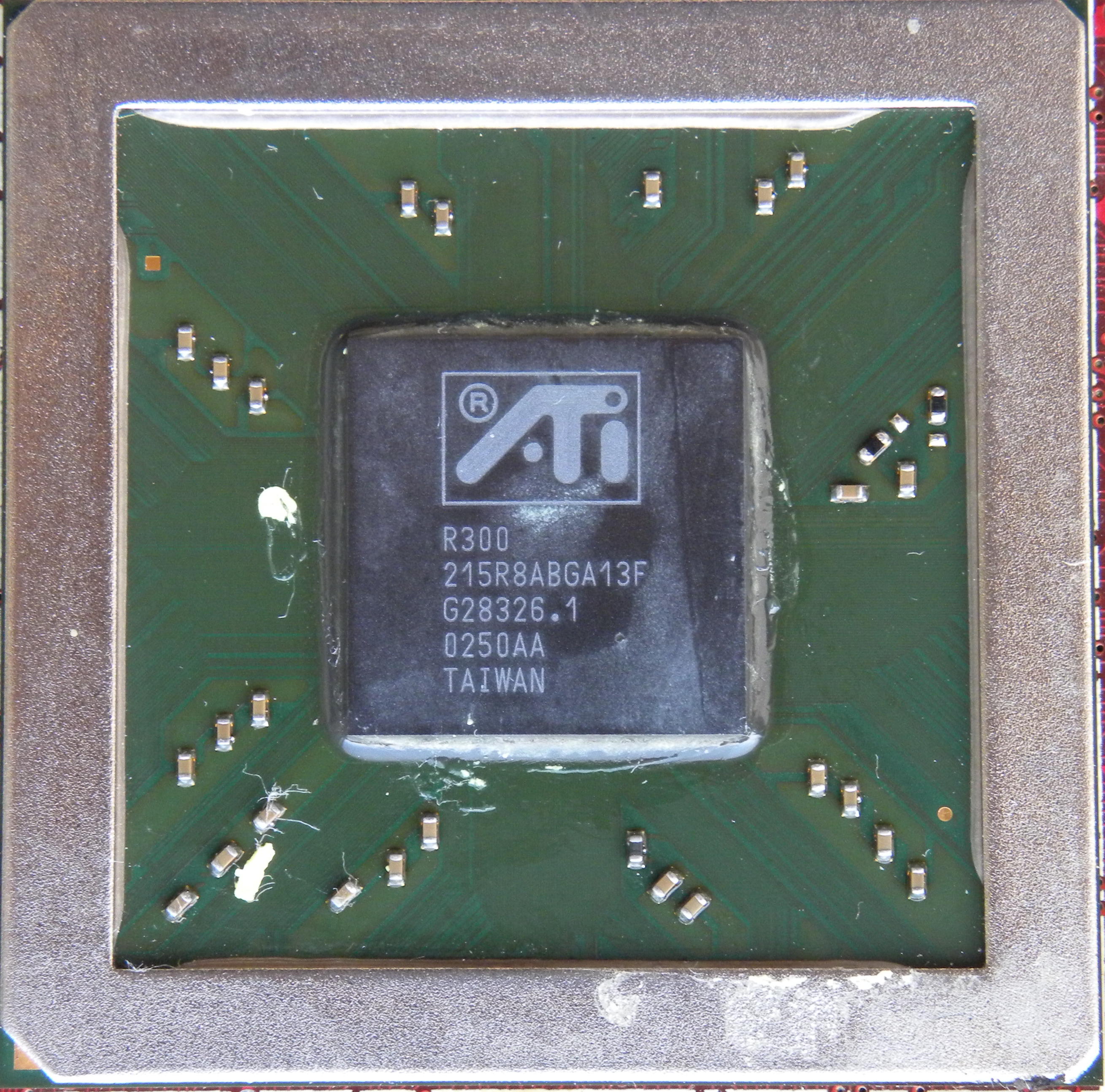

ATI R300 GPU
ATI R300 GPU

ATI R300 GPU

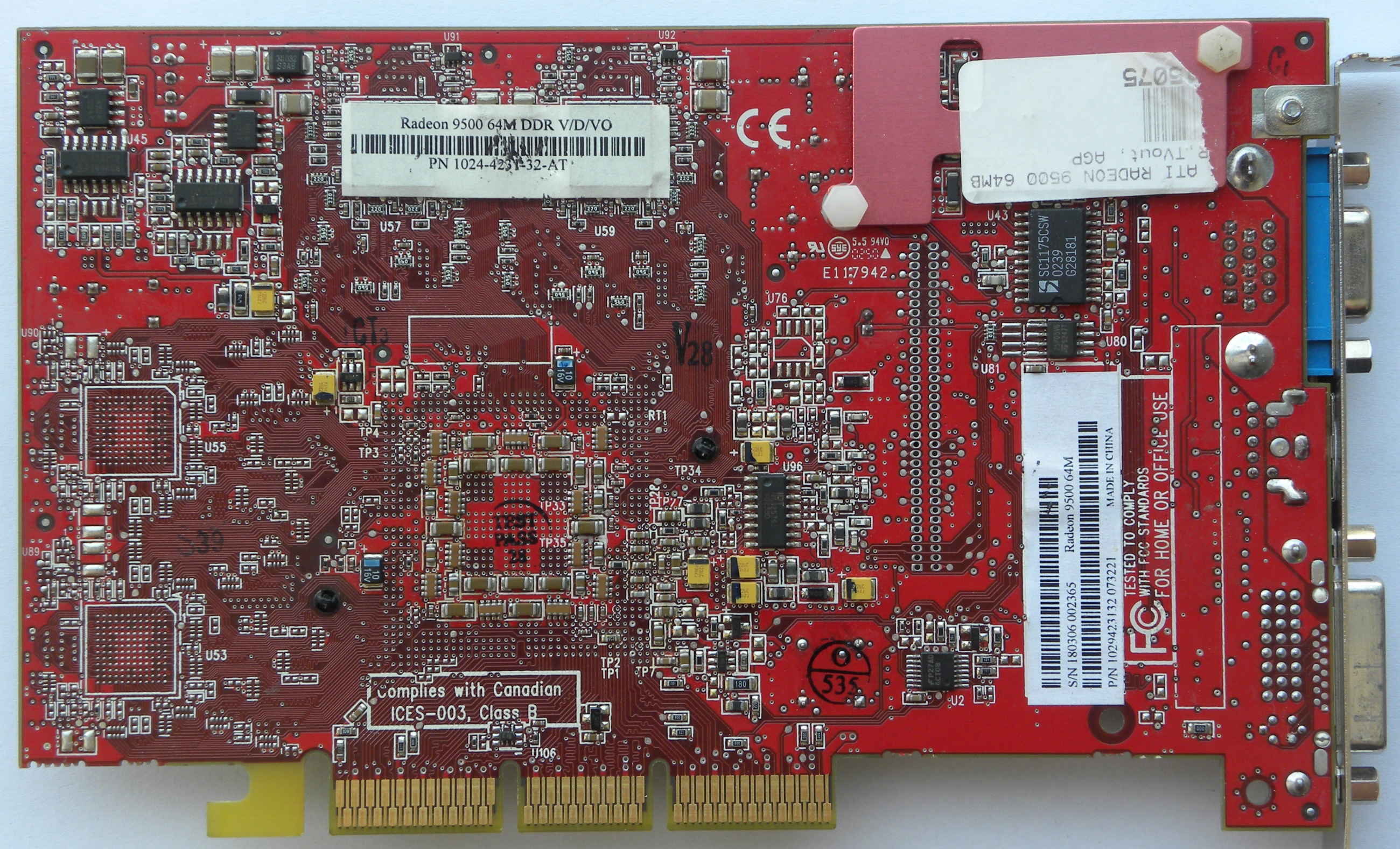

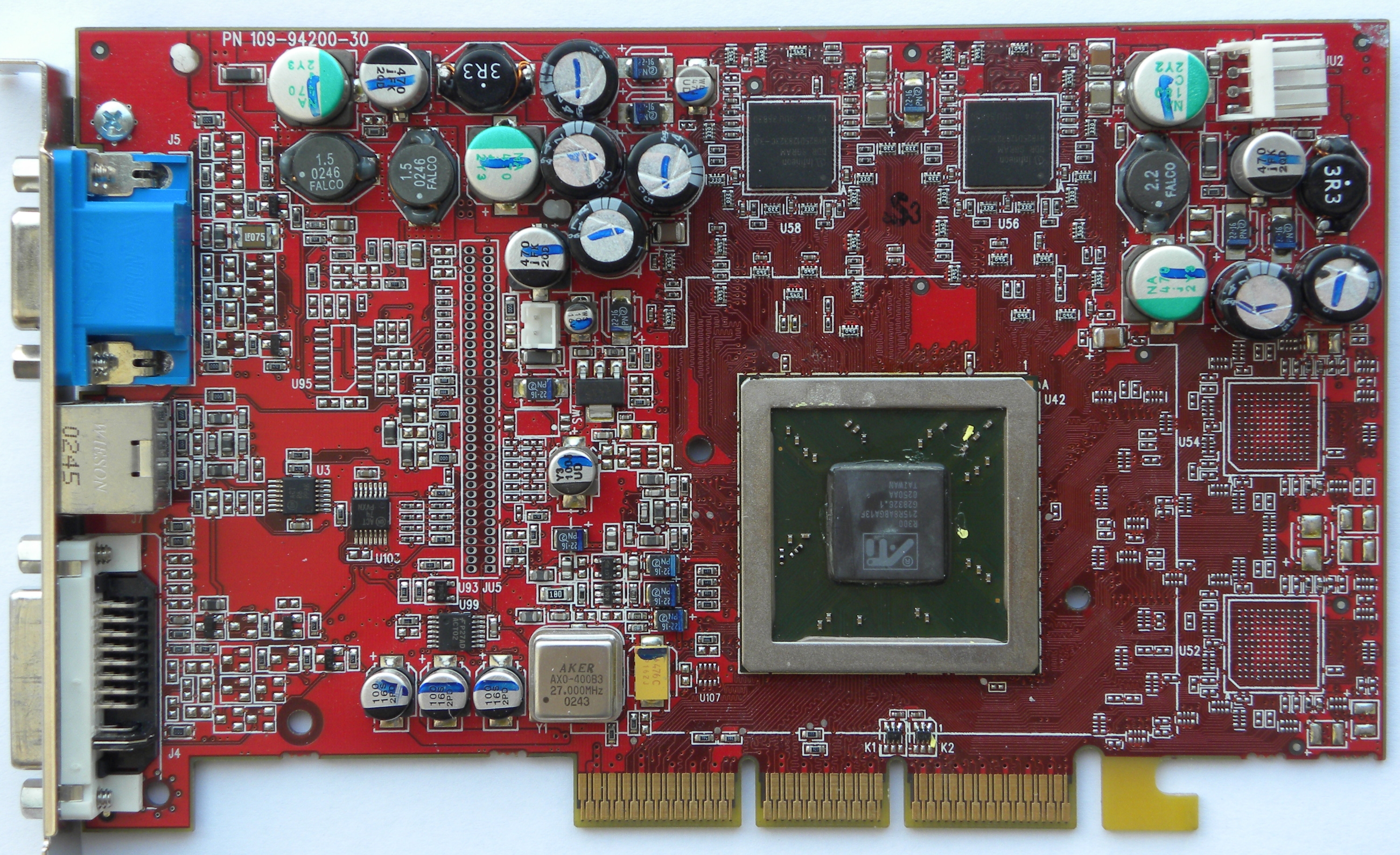

ATI Radeon 9500 64MB
ATI Radeon 9500 64MB

ATI Radeon 9500 64MB
ATI Radeon 9500 64MB
ATI Radeon 9500 64MB

ATI Radeon 9500 64MB
ATI Radeon 9500 64MB
ATI Radeon 9500 64MB

ATI Radeon 9500 64MB



Vlask's card:

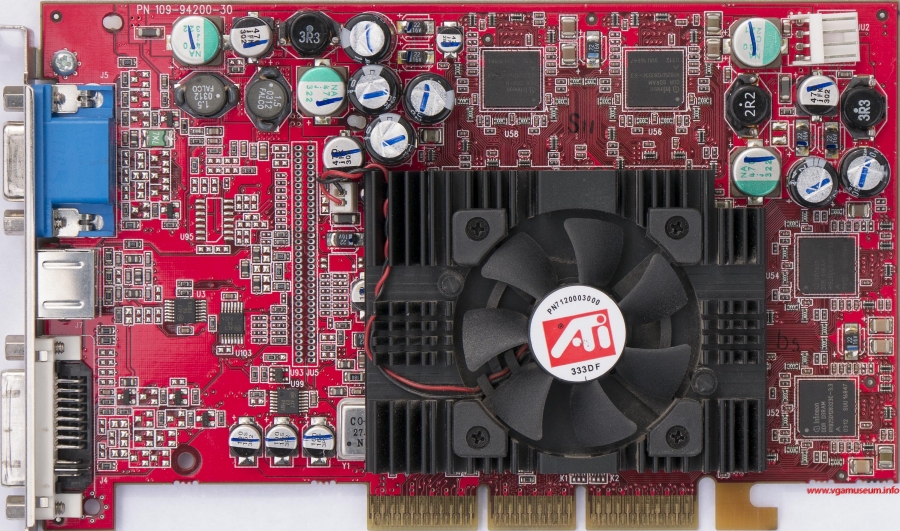

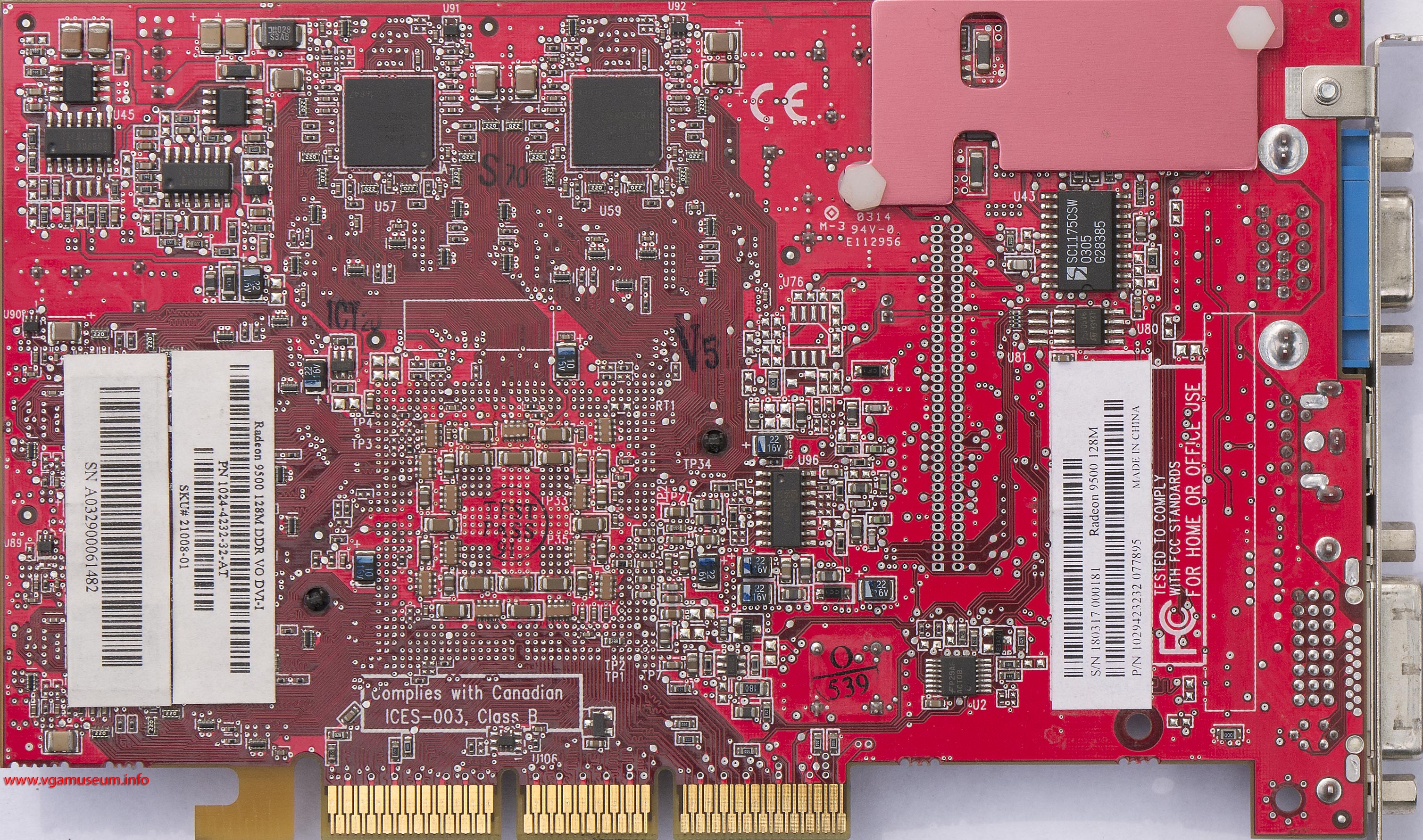

ATi Radeon 9500
ATi Radeon 9500

ATi Radeon 9500

ATi Radeon 9500
ATi Radeon 9500

ATi Radeon 9500

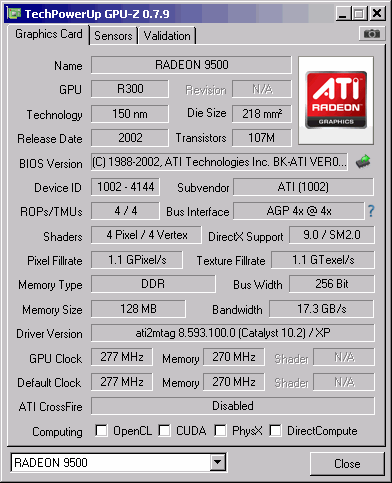

Radeon 9500 GPUZ
Radeon 9500 GPUZ

Radeon 9500 GPUZ

Additional Info

  • Made by: ATI
  • Codename: R300
  • Bus: AGP 8x
  • Memory Size: 64MB, 128MB
  • Max Memory Size: 128MB
  • Memory Type: DDR
  • Year: 2002
  • Card Type: VGA
  • Family: Radeon 9x
  • Manufacturer: TSMC
  • Process tech: 150nm
  • Transistors (Millions): 110
  • Made in: Taiwan
  • Owned by: Vlask, Zaatharen
  • Outputs: 15 pin D‐sub, DVI, S-Video
  • Price $: 179
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX9
  • OpenGL: 2.1
  • Core Clock (MHz): 275
  • Core: 256bit
  • Memory Clock (MHz): 540
  • Memory Bus Width: 256bit
  • Memory Bandwidth (MB/s): 17280
  • Pixel Pipelines: 4
  • Texture Units: 4
  • Vertex Shaders: 4 (2.0)
  • Pixel Shaders: 4 (2.0)
  • Pixel Fillrate (MPixel/s): 1100
  • Texel Fillrate (MTexel/s): 1100
  • Sold by: ATI
  • Ramdac (MHz): 400
