S3 ViRGE

1st S3 3D card.



ViRGE = Video and Rendering Graphics Engine. 2D engine is based on Trio64V+ core.

Palcal's cards:

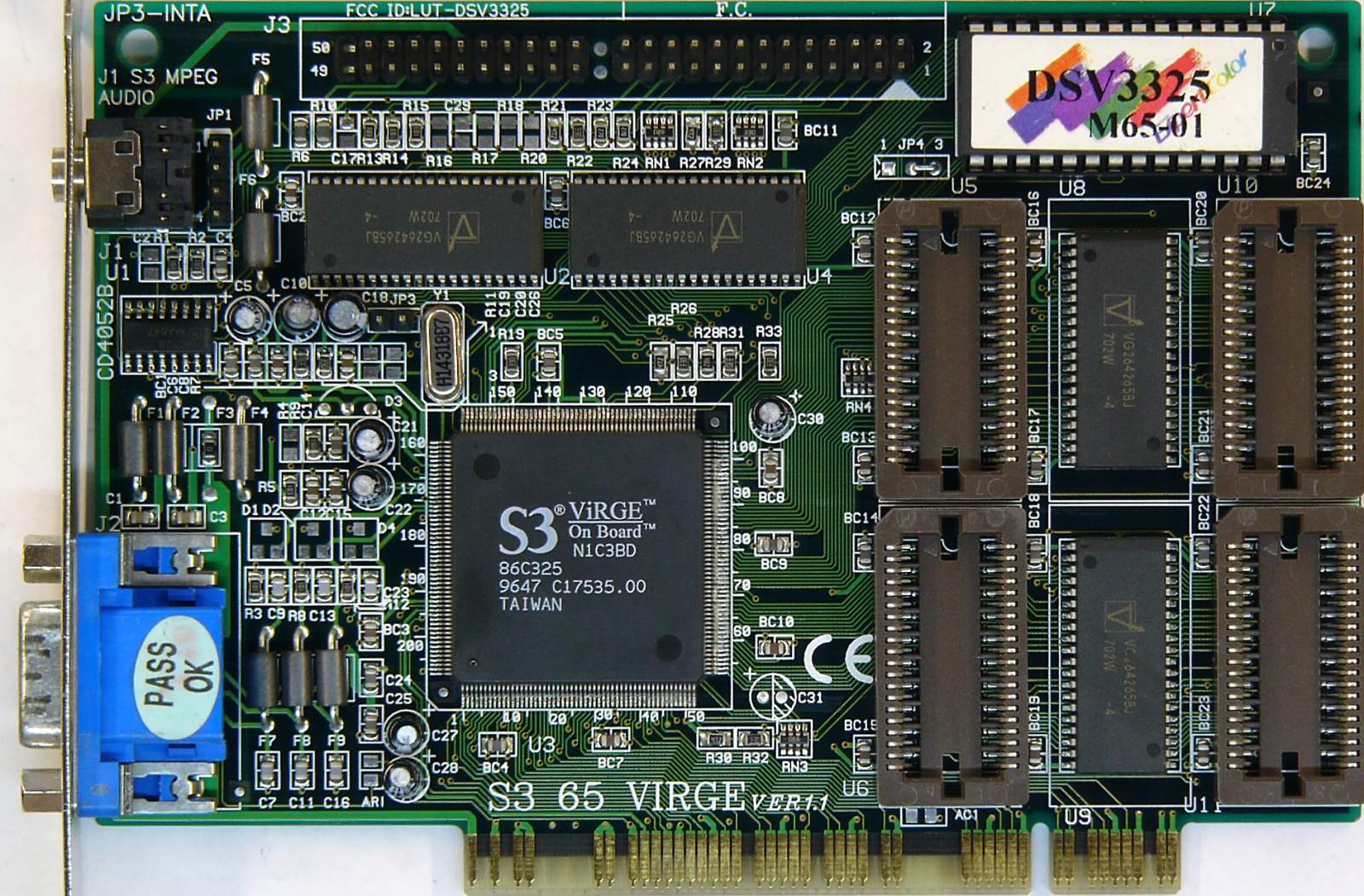

(307) ExpertColor DSV3325 ver.1.1
(307) ExpertColor DSV3325 ver.1.1
(307) ExpertColor DSV3325 ver.1.1

(307) ExpertColor DSV3325 ver.1.1
(307) ExpertColor DSV3325 ver.1.1
(307) ExpertColor DSV3325 ver.1.1

(296) J-MED2325B
(296) J-MED2325B
(296) J-MED2325B

(296) J-MED2325B
(296) J-MED2325B
(296) J-MED2325B

(289) Acorp VGA GUI 3330/3340
(289) Acorp VGA GUI 3330/3340
(289) Acorp VGA GUI 3330/3340

(289) Acorp VGA GUI 3330/3340
(289) Acorp VGA GUI 3330/3340
(289) Acorp VGA GUI 3330/3340

(282) ExpertColor DSV3325 ver.2.2
(282) ExpertColor DSV3325 ver.2.2
(282) ExpertColor DSV3325 ver.2.2

(282) ExpertColor DSV3325 ver.2.2
(282) ExpertColor DSV3325 ver.2.2
(282) ExpertColor DSV3325 ver.2.2

(251) Flagpoint
(251) Flagpoint
(251) Flagpoint

(251) Flagpoint
(251) Flagpoint
(251) Flagpoint



Zaatharen's cards:

Diamond Stealth 3D 2000 2MB
Diamond Stealth 3D 2000 2MB
Diamond Stealth 3D 2000 2MB

Diamond Stealth 3D 2000 2MB
Diamond Stealth 3D 2000 2MB
Diamond Stealth 3D 2000 2MB

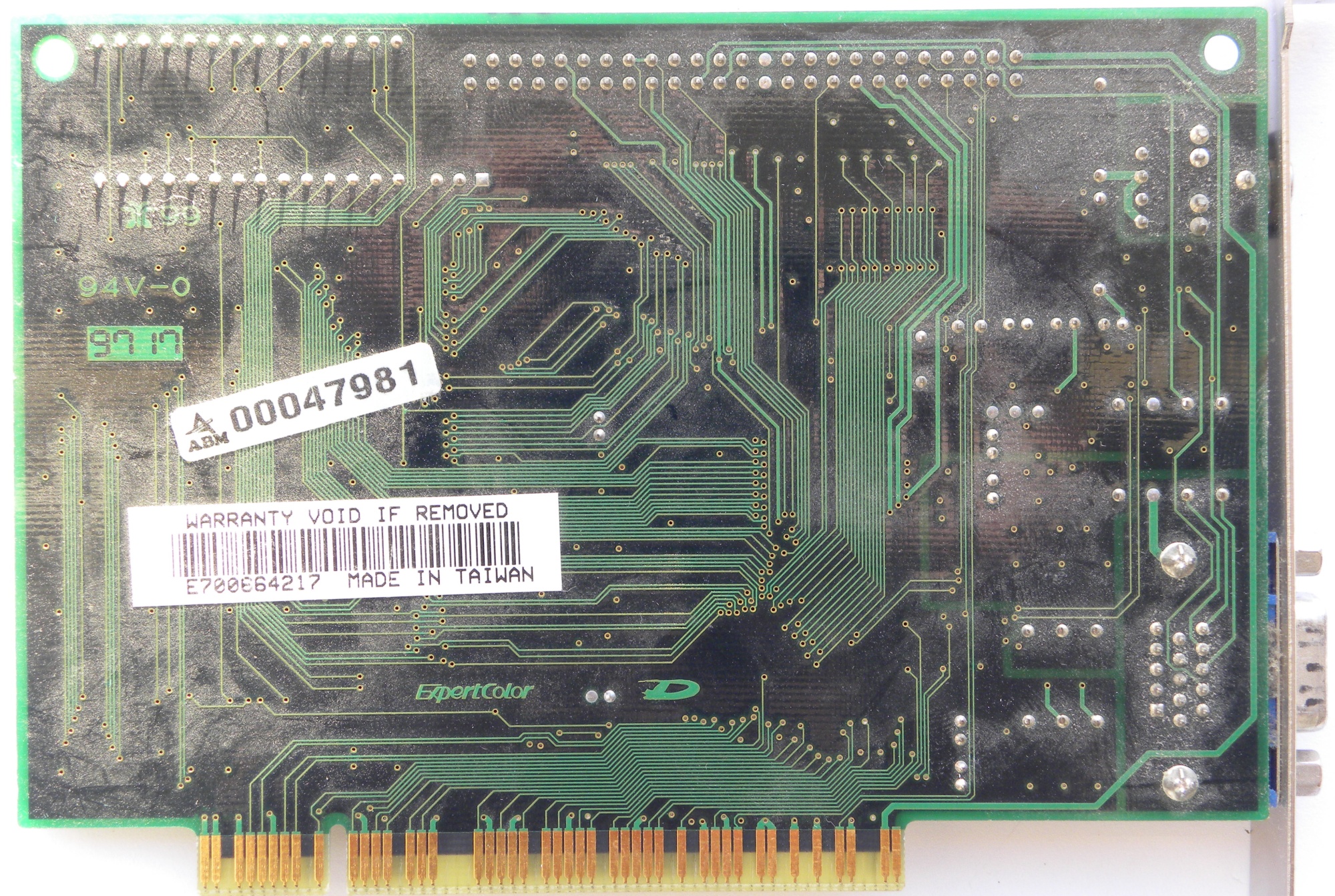

ExpertColor 2MB
ExpertColor 2MB
ExpertColor 2MB

ExpertColor 2MB
ExpertColor 2MB
ExpertColor 2MB

Rocket 3D 4MB
Rocket 3D 4MB
Rocket 3D 4MB

Rocket 3D 4MB
Rocket 3D 4MB
Rocket 3D 4MB

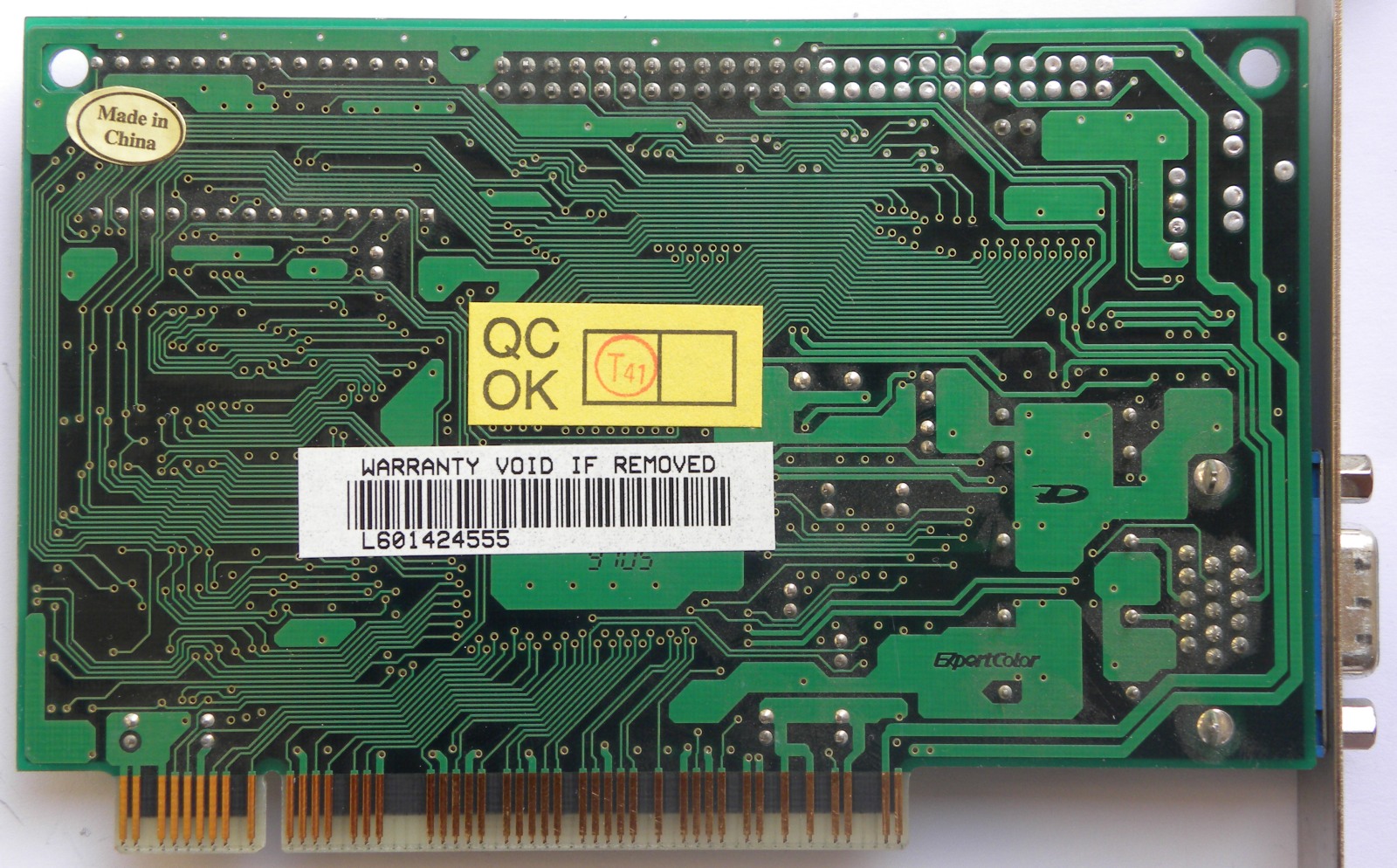

ExpertColor DSV3325
ExpertColor DSV3325
ExpertColor DSV3325

ExpertColor DSV3325
ExpertColor DSV3325
ExpertColor DSV3325

Diamond Stealth 3D 2000 rev.I
Diamond Stealth 3D 2000 rev.I
Diamond Stealth 3D 2000 rev.I

Diamond Stealth 3D 2000 rev.I
Diamond Stealth 3D 2000 rev.I
Diamond Stealth 3D 2000 rev.I

Diamond Stealth 3D 2000 rev.N
Diamond Stealth 3D 2000 rev.N
Diamond Stealth 3D 2000 rev.N

Diamond Stealth 3D 2000 rev.N
Diamond Stealth 3D 2000 rev.N
Diamond Stealth 3D 2000 rev.N

Eagle S3 Virge
Eagle S3 Virge
Eagle S3 Virge

Eagle S3 Virge
Eagle S3 Virge
Eagle S3 Virge



Vlask's cards:

Diamond Stealth 3D 2000 4MB 54,89MHz 1cycle EDO 3,5ns, Fastware 2MB 50,11MHz EDO 1cycle 0ns.

Diamond Stealth 3D 2000 HQ
Diamond Stealth 3D 2000 HQ
Diamond Stealth 3D 2000 HQ

Diamond Stealth 3D 2000 HQ
Diamond Stealth 3D 2000 HQ
Diamond Stealth 3D 2000 HQ

Fastware 2MB
Fastware 2MB
Fastware 2MB

Fastware 2MB
Fastware 2MB
Fastware 2MB

Additional Info

  • Made by: S3
  • Codename: 86C325
  • Bus: PCI
  • Memory Size: 2MB, 4MB
  • Max Memory Size: 4MB
  • Memory Type: EDO
  • Year: 1996
  • Announce Date: Monday, 13 November 1995
  • Card Type: VGA
  • Family: ViRGE
  • Manufacturer: UMC
  • Process tech: 500nm
  • Made in: Taiwan
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub
  • Price $: 199
  • Video Acceleration: MPEG-1 (VCD)
  • DirectX: DX3/5
  • Other API: S3 S3D
  • Core Clock (MHz): 55
  • Core: 64bit
  • Effective Memory Clock (MHz): 55
  • Memory Bus Width: 64bit
  • Pixel Pipelines: 1
  • Texture Units: 1
  • Texel Fillrate (MTexel/s): 23.6
  • Sold by: AcorpDataExpertDiamondFlagpoint
  • Max Core Clock (MHz): 55
  • Min Core Clock (MHz): 50
  • Max Memory Clock (MHz): 55
  • Min Memory Clock (MHz): 50
  • Ramdac (MHz): 135
  • OpenGL/D3D report: Txt
  • Press info: Diamond
  • Press info: S3
  • Press info: S3
  • Wikipedia: Wiki
  • Review: Vintage3D
  • Review: PC Mag
  • Review: A Few Steps
  • Info: S3
  • Info: retro.swarm
  • Info: Advertisment
  • Drivers: Vintage3D
  • Drivers: S3
Read 69386 times Last modified on Sunday, 11 April 2021 18:48
Published in S3 Graphics
Tagged under
Download attachments:

Related items

Media

More in this category: « S3 Trio64V2/GX S3 ViRGE/VX »

Comments

# S3 Expertcolor 2MB LUT-CP765 — Alex 2019-10-25 04:59
S3 Expertcolor 2MB LUT-CP765 in not Virge.
It is 86C765 Trio64V+
Thank You!
