AMD Radeon HD 7970

Written by
Rate this item
(0 votes)

First 28nm card on market and hi-end single GPU card from AMD.



Zaatharen's card:

 MSI R7970 - 2PMD3GD5/OC - Card has overclocked GPU from 925MHz to 1010MHz. Cooler is 3rd party Artic Accelero Extreme HD7970.

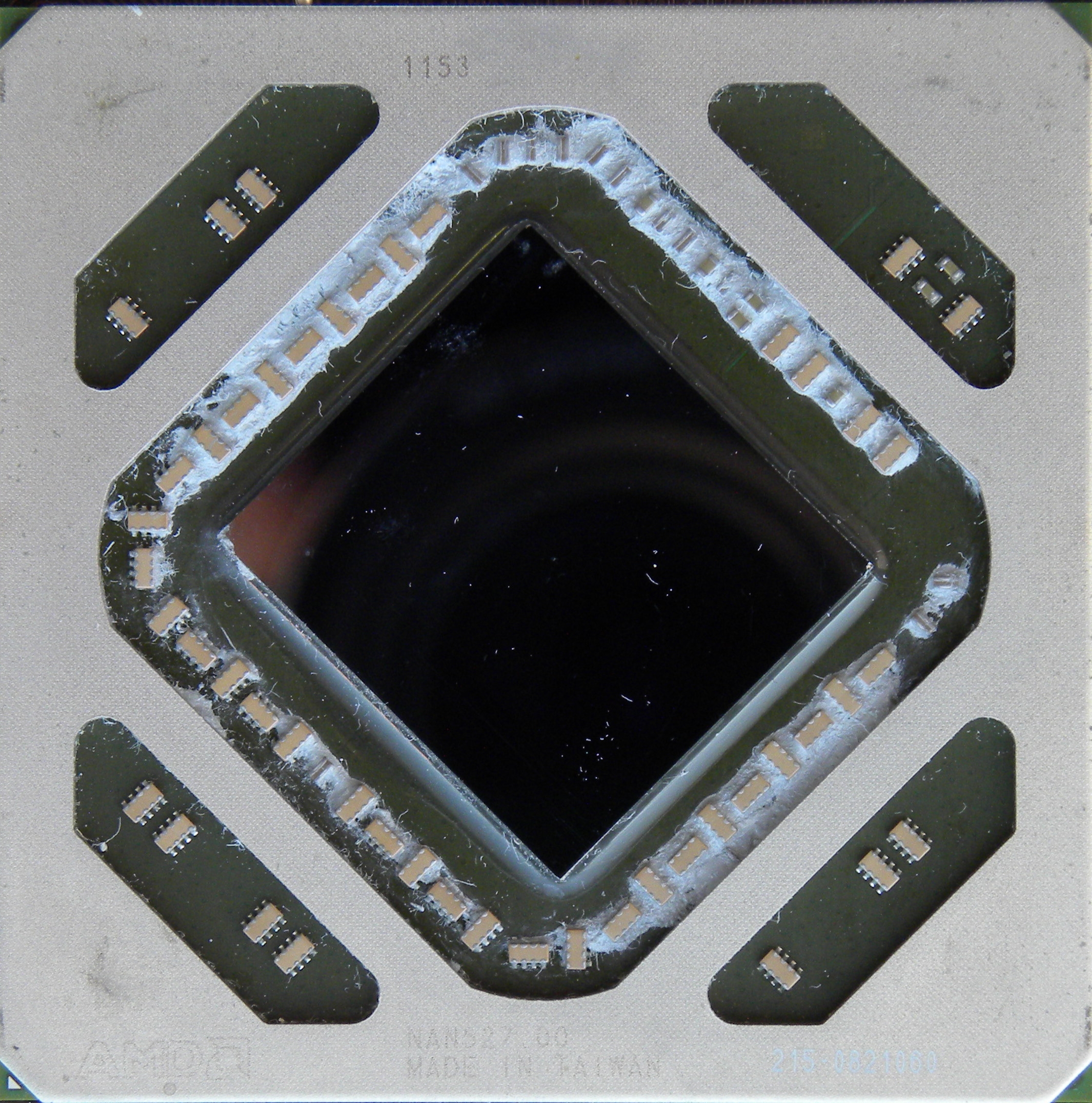

AMD Tahiti XT GPU
AMD Tahiti XT GPU

AMD Tahiti XT GPU

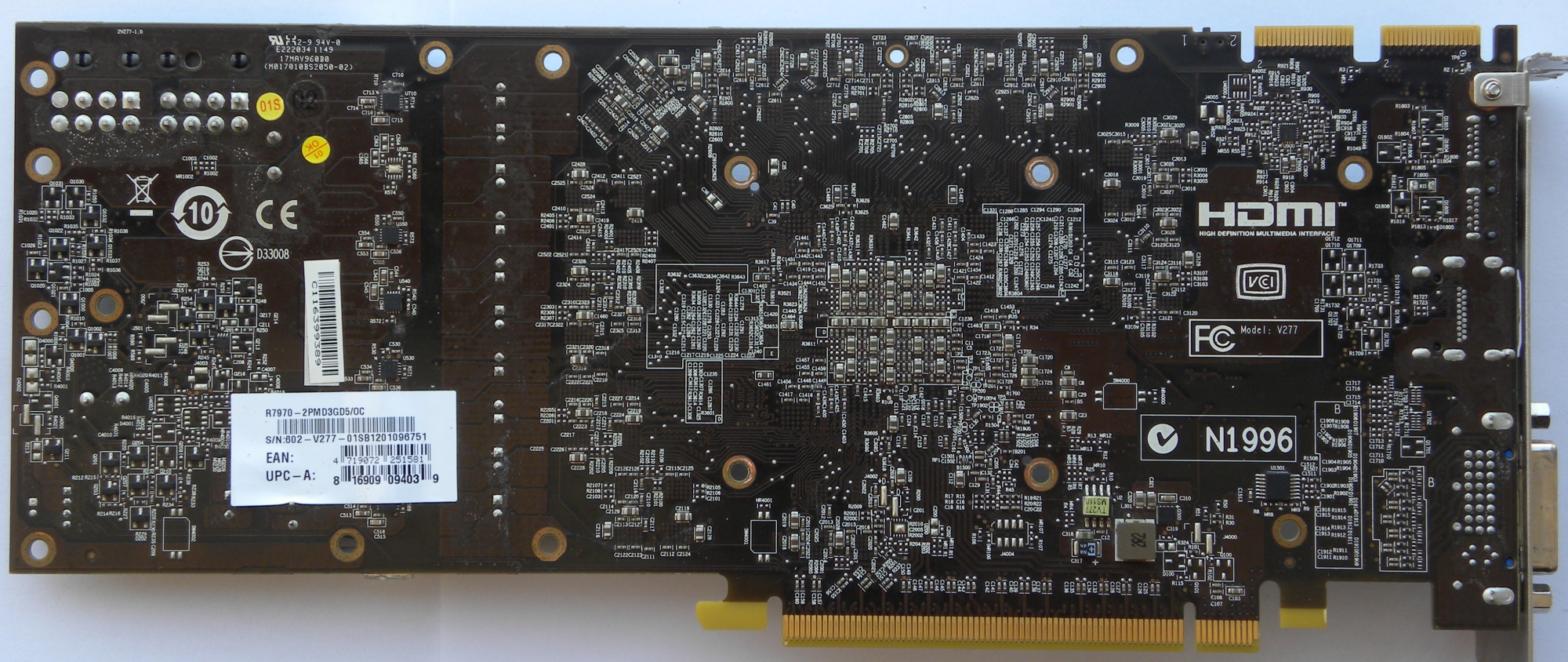

MSI R7970 - 2PMD3GD5/OC
MSI R7970 - 2PMD3GD5/OC

MSI R7970 - 2PMD3GD5/OC
MSI R7970 - 2PMD3GD5/OC
MSI R7970 - 2PMD3GD5/OC

MSI R7970 - 2PMD3GD5/OC
MSI R7970 - 2PMD3GD5/OC
MSI R7970 - 2PMD3GD5/OC

MSI R7970 - 2PMD3GD5/OC
MSI R7970 - 2PMD3GD5/OC
MSI R7970 - 2PMD3GD5/OC

MSI R7970 - 2PMD3GD5/OC
MSI R7970 - 2PMD3GD5/OC
MSI R7970 - 2PMD3GD5/OC

MSI R7970 - 2PMD3GD5/OC



Additional Info

  • Made by: AMD
  • Codename: Tahiti XT
  • Bus: PCI-E 3 x16
  • Memory Size: 3GB
  • Max Memory Size: 6GB
  • Memory Type: GDDR5
  • Year: 2011
  • Announce Date: Thursday, 22 December 2011
  • Card Type: VGA
  • Family: Radeon HD7x
  • Manufacturer: TSMC
  • Process tech: 28nm
  • Transistors (Millions): 4313
  • Made in: Taiwan, Philippines
  • Owned by: Zaatharen

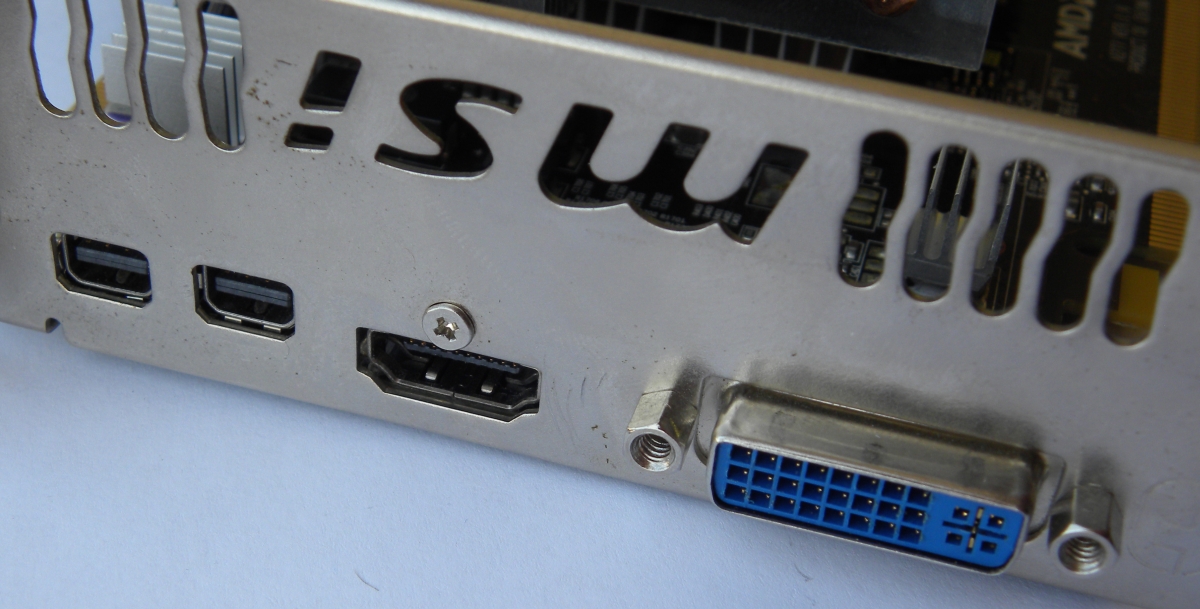

  • Outputs: DVI, HDMI, DisplayPort
  • Power consumption (W): 250
  • Price $: 549
  • Video Acceleration: MPEG-4 AVC (H.264)
  • DirectX: DX12
  • OpenGL: 4.5
  • Other API: Vulkan
  • Core Clock (MHz): 1010
  • Memory Bus Width: 384bit
  • Memory Bandwidth (MB/s): 264000
  • Texture Units: 128
  • ROPs: 32
  • Unified Shaders: 2048
  • Shader Model: 5.0 (DX11)
  • Pixel Fillrate (MPixel/s): 32300
  • Texel Fillrate (MTexel/s): 129000
  • Shaders power (GFlops): 4137
  • Sold by: MSI
  • Max Core Clock (MHz): 1010
  • Min Core Clock (MHz): 925
  • Max Memory Clock (MHz): 5800
  • Min Memory Clock (MHz): 5500
  • Ramdac (MHz): 400
