Low cost SVGA adapter.
Palcal's cards:
(761) AVGA3B-3.1
(761) AVGA3B-3.1

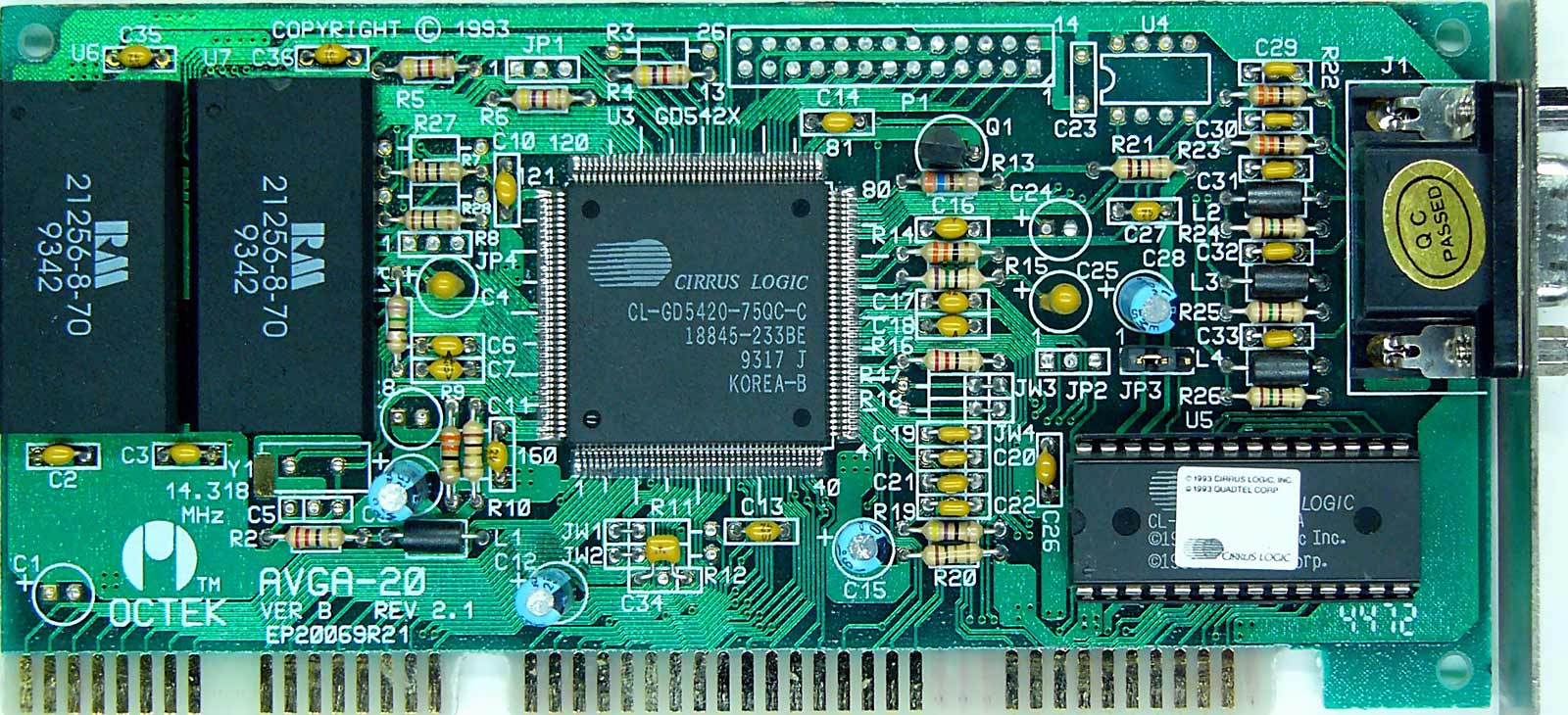

Octek AVGA-20
Octek AVGA-20

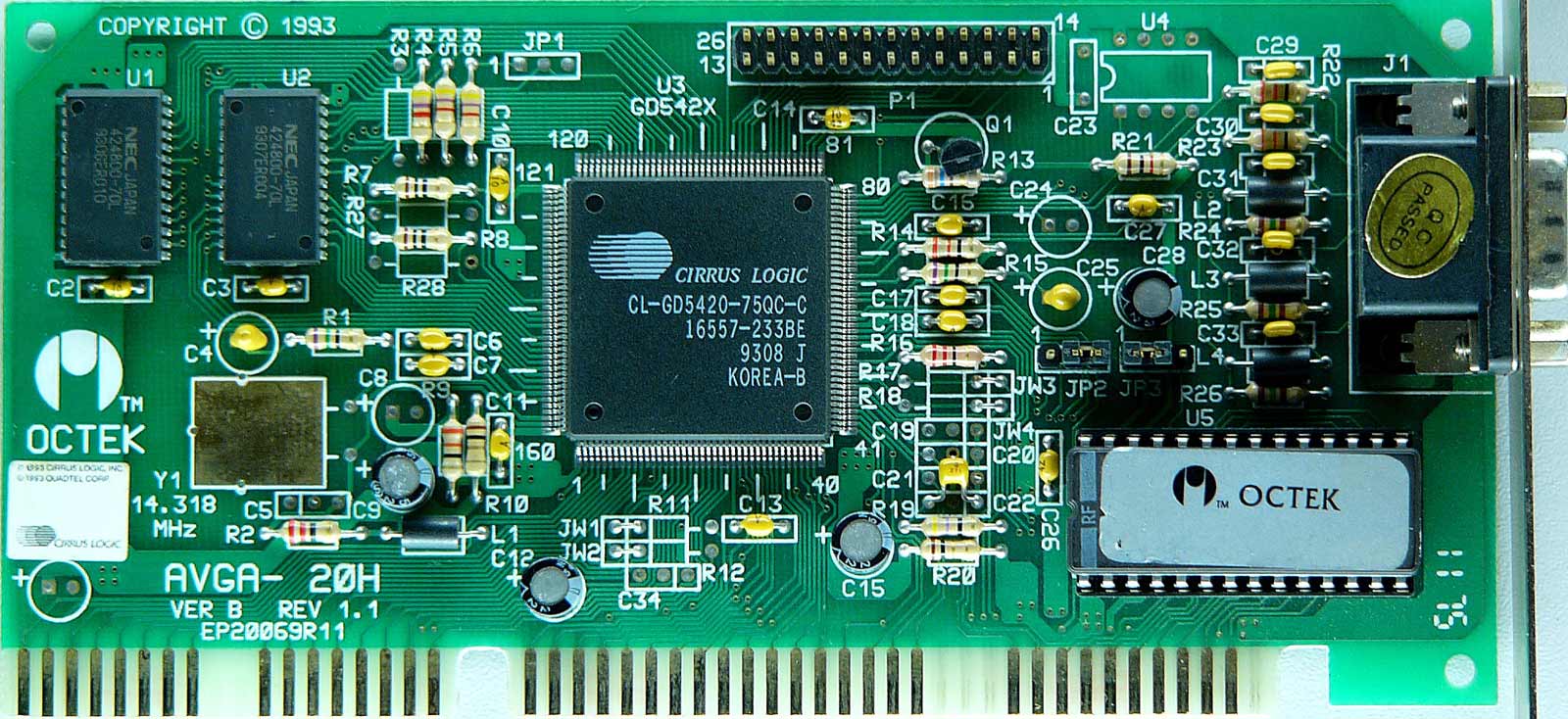

Octek AVGA-20H
Octek AVGA-20H
Octek AVGA-20
Octek AVGA-20
Kentech CL-GD5420
Kentech CL-GD5420
(523) Puretek
(523) Puretek
(709) ATIF-VGA
(709) ATIF-VGA
Vlask's cards:
1st card is traded with Kamil Hałasiewicz
Kentech CL-GD5420
Kentech CL-GD5420 HQ
Puretek CL-GD5420 HQ
Puretek CL-GD5420 HQ
VGA module from Siemens Beetle(486SLC-33Mhz)
Octek AVGA-20 chips
Malaysia chipsAdditional Info
- Made by: Cirrus Logic
- Codename: GD5420
- Bus: ISA 16bit
- Memory Size: 512kB, 1MB
- Max Memory Size: 1MB
- Memory Type: FPM
- Year: 1992
- Card Type: VGA
- Made in: Taiwan, Korea, Malaysia
- Owned by: Vlask, Palcal
- Outputs: 15 pin D‐sub
- Power consumption (W): 1.5
- Core Clock (MHz): 75
- Effective Memory Clock (MHz): 50
- Memory Bus Width: 16bit
- Sold by: KentechOctekPuretek
Published in
Cirrus Logic Inc.
Tagged under
Download attachments:
- Data Book (7882 Downloads)
- Technical Reference Manual (8019 Downloads)
- Bios (7310 Downloads)
